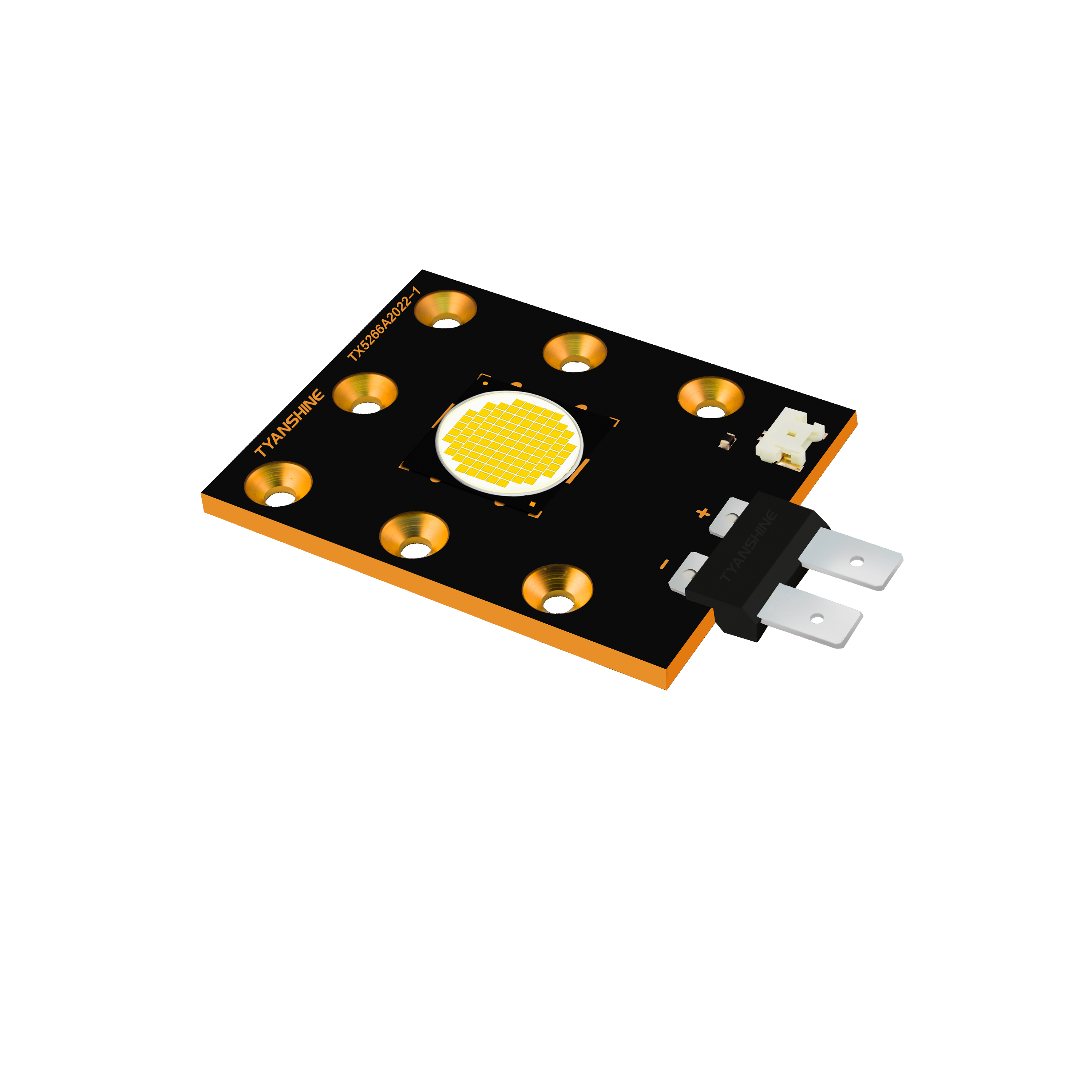

5266W 450W high power stage LED engine

Home Products Product Center

Specifications

TX-5266W450FC120-NUFENW-B01H95 WKF-BE0952[View online]
TX-5266W450FC120-NUFENW-C01H95 WKF-BE0953[View online]

Relevant attachments

REACH for Colours Matrix LED Module[View online]
RoHS for Colours Matrix LED Module[View online]
VOC Report with Black INK[View online]

Product Features

· Compact LES with high light density, up tp 7W/mm²
· Latest advanced phosphor technology, high color consistency
· Thermal-electic isolation copper substrate, safe & stable, easy assembling

Application Area

Entertainment lighting
Architectural lighting
Medical illumination, Fiber Optics
Event lighting
Stage lighting Projection
Searchlight

RoHS REACH

Characteristics	Unit	Typical	Maximum
Viewing Angle	Degree	120
DC Forward Current	mA	13000	13500
Forward Voltag	V	35	37
Thermal Resistance	K/W	0.036

Typ. spec

CCT(K)	Lumen(Lm)	Ra	Current(mA)
W:5100-6000	28000-33000	95	13000
II:2950-3220	26000-30000	95	13000
