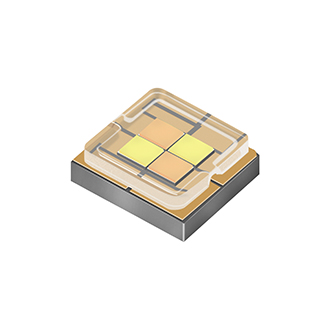

TX6065WS60

Home Products Product Center

Specifications

TX-6065WS60FC120-NUVENG-01H80 WKF-BE0230[View online]
CERAMIC LED REACH TEST REPORT[View online]

Relevant attachments

High Power SMD LED ROHS[View online]
CERAMIC LED REACH TEST REPORT[View online]

Product Features

· Compact power LEDs, Individual quad chips
· Vertical chips, higher thermal conductivity, easy light collection
· Ceramic PKG, eutectic-bonding, thermal isolation, fast conductivity

Application Area

Stage lighting,Outdoor lighting
Special lighting

RoHS REACH

Characteristics	Unit	Typical	MAXIMUM
Viewing Angle(FWHM)	degree	120
DC Forward Current	mA	4000*2	4500*2
Forward Voltag	V	3.0	4.0
Thermal Resistance	℃/W	1.0

Typ. Spec

CCT(K)	Lumen(Lm)	Ra	Current(mA)
W:6500-7300	1400-1800	80	4000*2
S:3000-3240	900-1150	80	4000*2
