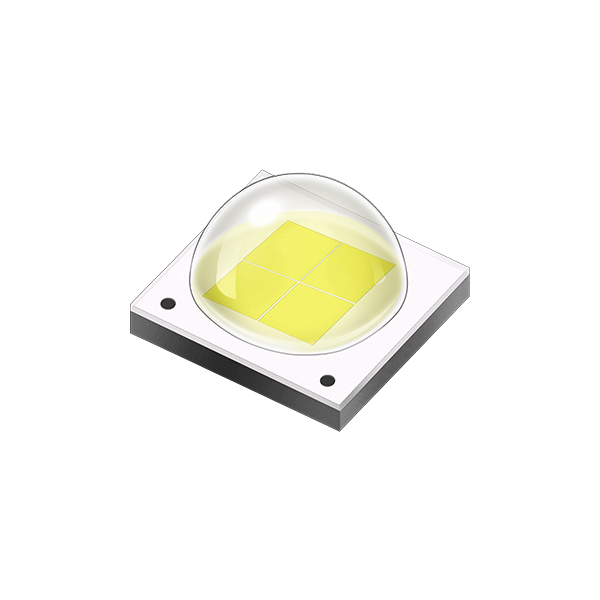

TX5050W20

Home Products Product Center

Specifications

Relevant attachments

Ceramic Dome Lens SMD ROHS[View online]
CERAMIC LED REACH TEST REPORT[View online]

Product Features

· Compact power LEDs, Individual quad chips
· Vertical chips, higher thermal conductivity, easy light collection
· Ceramic PKG, eutectic-bonding, thermal isolation, fast conductivity

Application Area

Stage lighting,Outdoor lighting
Special lighting

RoHS REACH

Characteristics	Unit	Typical	MAXIMUM
Viewing Angle(FWHM)	degree	120
DC Forward Current	mA	700*2	1500*2
Forward Voltag	V	5.8	6.4
Thermal Resistance	K/W	0.64

Typ. Spec

CCT(K)	Lumen(Lm)	Ra	Current(mA)
5500-6800	850-950	90	700*2
3000-3300	780-850	90	700*2
