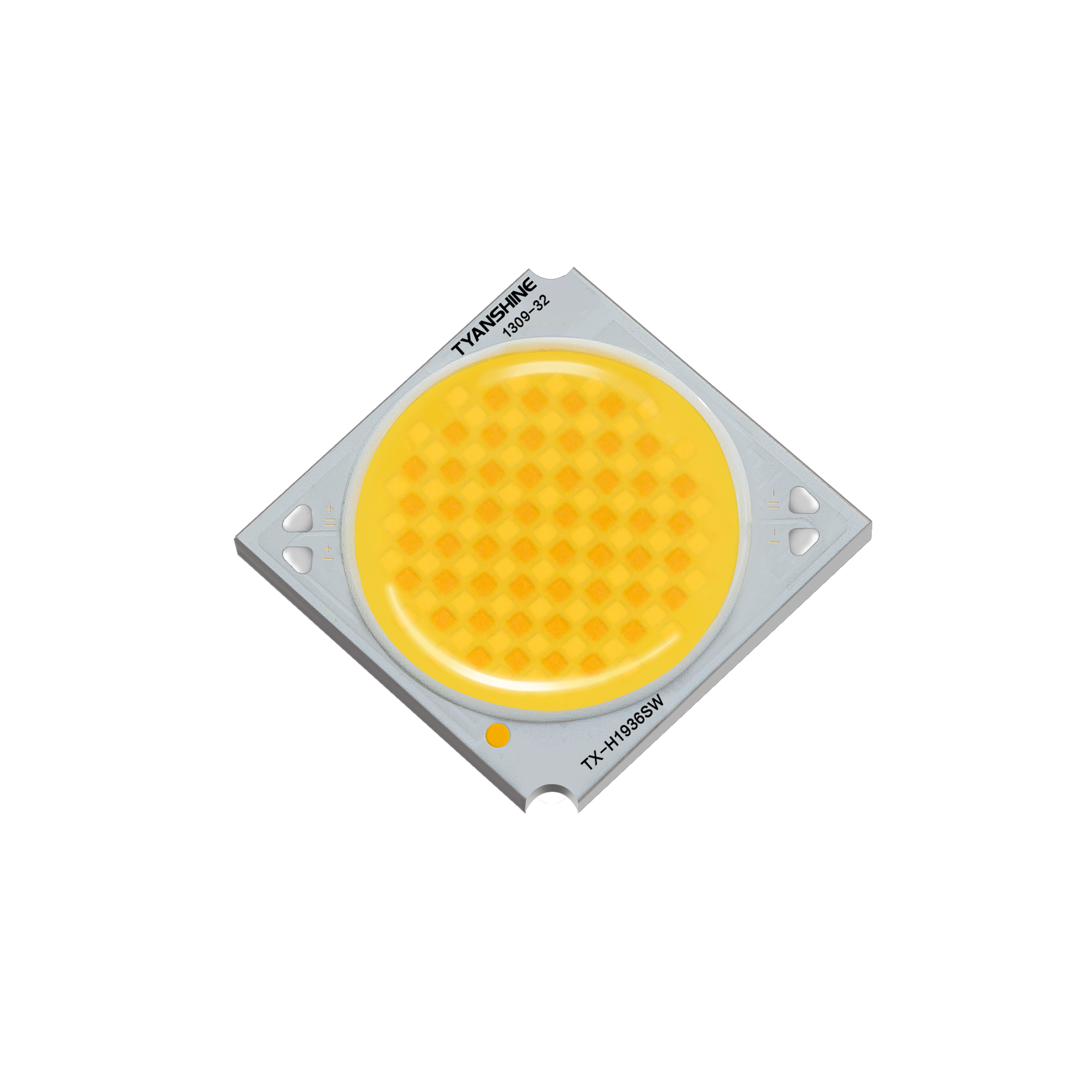

TX-H1936

Home Products Product Center

Specifications

Relevant attachments

Product Features

Tunable White Cob
· Double phosphor coating technology, excellent color-mixing
· Mac-Adam ellipse 3 step binning, high color consistency
· High light quality, anti-glare
· CCT Customizable

Application Area

Commercial lighting / Residential lighting / Smart lighting
spot lights,down lights, ceiling lights, tracking lights
Photography lighting Fresnels lights
RoHS REACH
Characteristics Unit Typical MAXIMUM
Viewing Angle(FWHM) degree 115
DC Forward Current mA 1000 1200
Forward Voltag V 37 39
Thermal Resistance K/W 0.21
Light Emitting Surface mm Φ16.8
Typ. Spec
CCT(K) Lumen(Lm) Ra Current(mA)
I:2700 3000-3600 90 1000
II:6000 3600-4400 90 1000
